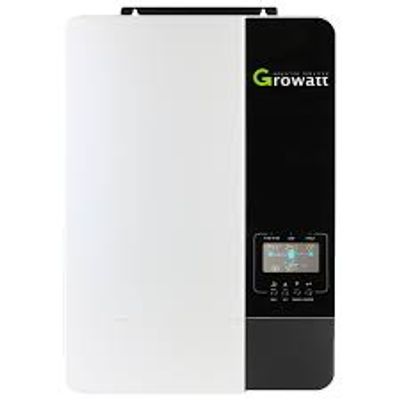

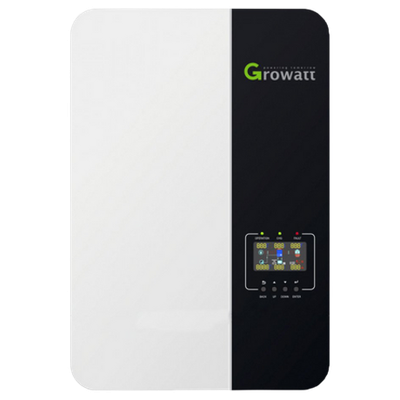

Growatt Hybrid Inverter 5 Kw
Full SpecificationItem Solar IPSModel ✅ Growatt SPF 5000 ESIntegrated MPPT Charge Controller: YesEqualization Charging Function: YesWork with or Without Battery: YesPV input voltage up to 450VDC: YesConfigurable Grid or Solar Input Priority: YesWIF / GPRS Remote Monitoring: YesBattery Voltage: 48V DCBattery Type: 5000VA/5000WInverter OutputRated Power: 5000VA/5000WParallel Capability: Yes, 6 units MaximumAC Voltage Regulation(Battery Mode): 230VAC+- 5% @ 50/60HzSurge Power: 10000VAEfficiency (Peak): 93%Waveform: Pure sine waveTransfer Time: 10ms typical, 20ms MAxSolar ChargerMaximum PV Array Power: 6000WMPPT Range at Operating Voltage: 120VDC-430VDCNumber of Independent MPP Trackers/Strings per MPP Tracker: 1/1Maximum PV Array Open Circuit Voltage: 450V DCMaximum Solar Charger Current: 100AAC ChargerCharger Current: 80AAC Input Volatge:230VACSelectable Voltage Range:170-280 VAC for Personal Computers90-280VAC for Home AppliancesFrequency Range: 50/60Hz ( Auto Sensing)Operating EnvironmentAltitude: up to 2000 mHumidity: 5 to 95% relative humidity (non-condensing)Operating Temperature: 0°C-55°CStorage Temperature: -15°C -60°CPhysicalProtection Degree: IP20Dimension (W x H x D): 300 x 485 x 134mmNet Weight: 12 Kg
Dipto Electronics Savar
Category List
All products
Details:
- Warranty2 Years warranty
Full Specification
Item Solar IPS
Model ✅ Growatt SPF 5000 ES
Integrated MPPT Charge Controller: Yes
Equalization Charging Function: Yes
Work with or Without Battery: Yes
PV input voltage up to 450VDC: Yes
Configurable Grid or Solar Input Priority: Yes
WIF / GPRS Remote Monitoring: Yes
Battery Voltage: 48V DC
Battery Type: 5000VA/5000W
Inverter Output
Rated Power: 5000VA/5000W
Parallel Capability: Yes, 6 units Maximum
AC Voltage Regulation(Battery Mode): 230VAC+- 5% @ 50/60Hz
Surge Power: 10000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave
Transfer Time: 10ms typical, 20ms MAx
Solar Charger
Maximum PV Array Power: 6000W
MPPT Range at Operating Voltage: 120VDC-430VDC
Number of Independent MPP Trackers/Strings per MPP Tracker: 1/1
Maximum PV Array Open Circuit Voltage: 450V DC
Maximum Solar Charger Current: 100A
AC Charger
Charger Current: 80A
AC Input Volatge:230VAC
Selectable Voltage Range:
170-280 VAC for Personal Computers
90-280VAC for Home Appliances
Frequency Range: 50/60Hz ( Auto Sensing)
Operating Environment
Altitude: up to 2000 m
Humidity: 5 to 95% relative humidity (non-condensing)
Operating Temperature: 0°C-55°C
Storage Temperature: -15°C -60°C
Physical
Protection Degree: IP20
Dimension (W x H x D): 300 x 485 x 134mm
Net Weight: 12 Kg
Item Solar IPS
Model ✅ Growatt SPF 5000 ES
Integrated MPPT Charge Controller: Yes
Equalization Charging Function: Yes
Work with or Without Battery: Yes
PV input voltage up to 450VDC: Yes
Configurable Grid or Solar Input Priority: Yes
WIF / GPRS Remote Monitoring: Yes
Battery Voltage: 48V DC
Battery Type: 5000VA/5000W
Inverter Output
Rated Power: 5000VA/5000W
Parallel Capability: Yes, 6 units Maximum
AC Voltage Regulation(Battery Mode): 230VAC+- 5% @ 50/60Hz
Surge Power: 10000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave
Transfer Time: 10ms typical, 20ms MAx
Solar Charger
Maximum PV Array Power: 6000W
MPPT Range at Operating Voltage: 120VDC-430VDC
Number of Independent MPP Trackers/Strings per MPP Tracker: 1/1
Maximum PV Array Open Circuit Voltage: 450V DC
Maximum Solar Charger Current: 100A
AC Charger
Charger Current: 80A
AC Input Volatge:230VAC
Selectable Voltage Range:
170-280 VAC for Personal Computers
90-280VAC for Home Appliances
Frequency Range: 50/60Hz ( Auto Sensing)
Operating Environment
Altitude: up to 2000 m
Humidity: 5 to 95% relative humidity (non-condensing)
Operating Temperature: 0°C-55°C
Storage Temperature: -15°C -60°C
Physical
Protection Degree: IP20
Dimension (W x H x D): 300 x 485 x 134mm
Net Weight: 12 Kg
Growatt Hybrid Inverter 5 Kw
58,000 BDT75,000 BDTSave 17,000 BDT
