Details:
- Warranty4 years warranty
Full Specification
Item Battery
Model ✅ LiWatt 12v100AH
Usage IPS
Voltage 12 Volt
Capacity 100Ah
Charging Time 4
Initial Current 100Ah
Cycle Use 4000 pages
Standby Use Yes
Maintenance Sealed
Weight 11.5 Kg
Application
Household
Solar Light
IPS & UPS
Fishing boat
Inverter
Function of BMS
Over charge detection function
Over discharge detection function
Over current detection function
Temperature protection function
Short circuit detection function
Balance function
Electrical Characteristics
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy: 1280Wh
Internal Resistance: ≤20mΩ without BMS
Cycle Life: ≥4000 cycles at 85%DOD at 25℃
Design Life: 12 years at 25℃
Self-Discharge (30 days): ≤5% at 25℃
Efficiency of Charge: ≥98%
Efficiency of Discharge: ≥100% at 0.2C & ≥96% at 1C
Charge
Charge Voltage: 14.2~14.6V
Max. Charge Current: 100A
Charge Mode: 0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)
Discharge
Max. Continuous Discharge Current: 100A
Discharge Cut-off Voltage: 9.5~10.5V
Environmental
Charge Temperature Range: 0℃~45℃
Discharge Temperature Range: -10℃~55℃
Optimum Operation Temperature: 10℃~35℃
Storage Temperature: -10℃~35℃, ≤85% Relative Humidity
Water Dust Resistance: IP65
Mechanical
Case: ABS
Terminal: M6
Dimension L x W x H: 260 x 168 x 209mm
Max. Weight: 12 Kg
Others
Communication Port: Not available
Parallel in Maximum: 4 pcs
Series in Maximum: Not allowed
Description

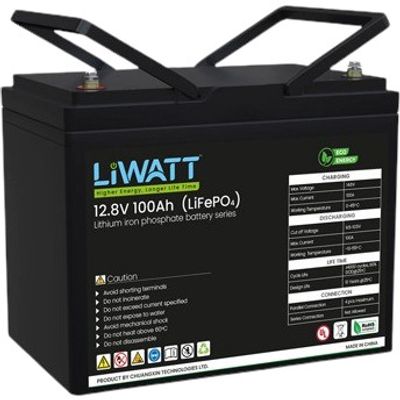

The LiWatt 12.8V 100AH phosphate battery is a reliable power source created for use in inverters, IPS, and UPS systems. With a charging capacity of MaxVot-14.6 and Max Curr-100AH, this battery ensures longer & efficient power delivery. Also, it offers a long cycle life of over 4000 cycles at 80% DOD at 25C, providing consistent performance
Liwatt Lithium Battery 12V (100Ah)
29,500 BDT32,500 BDTSave 3,000 BDT
1
Details:
- Warranty4 years warranty
Full Specification
Item Battery
Model ✅ LiWatt 12v100AH
Usage IPS
Voltage 12 Volt
Capacity 100Ah
Charging Time 4
Initial Current 100Ah
Cycle Use 4000 pages
Standby Use Yes
Maintenance Sealed
Weight 11.5 Kg
Application
Household
Solar Light
IPS & UPS
Fishing boat
Inverter
Function of BMS
Over charge detection function
Over discharge detection function
Over current detection function
Temperature protection function
Short circuit detection function
Balance function
Electrical Characteristics
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy: 1280Wh
Internal Resistance: ≤20mΩ without BMS
Cycle Life: ≥4000 cycles at 85%DOD at 25℃
Design Life: 12 years at 25℃
Self-Discharge (30 days): ≤5% at 25℃
Efficiency of Charge: ≥98%
Efficiency of Discharge: ≥100% at 0.2C & ≥96% at 1C
Charge
Charge Voltage: 14.2~14.6V
Max. Charge Current: 100A
Charge Mode: 0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)
Discharge
Max. Continuous Discharge Current: 100A
Discharge Cut-off Voltage: 9.5~10.5V
Environmental
Charge Temperature Range: 0℃~45℃
Discharge Temperature Range: -10℃~55℃
Optimum Operation Temperature: 10℃~35℃
Storage Temperature: -10℃~35℃, ≤85% Relative Humidity
Water Dust Resistance: IP65
Mechanical
Case: ABS
Terminal: M6
Dimension L x W x H: 260 x 168 x 209mm
Max. Weight: 12 Kg
Others
Communication Port: Not available
Parallel in Maximum: 4 pcs
Series in Maximum: Not allowed
Description
The LiWatt 12.8V 100AH phosphate battery is a reliable power source created for use in inverters, IPS, and UPS systems. With a charging capacity of MaxVot-14.6 and Max Curr-100AH, this battery ensures longer & efficient power delivery. Also, it offers a long cycle life of over 4000 cycles at 80% DOD at 25C, providing consistent performance
