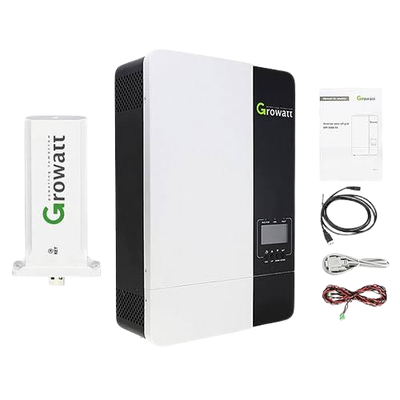

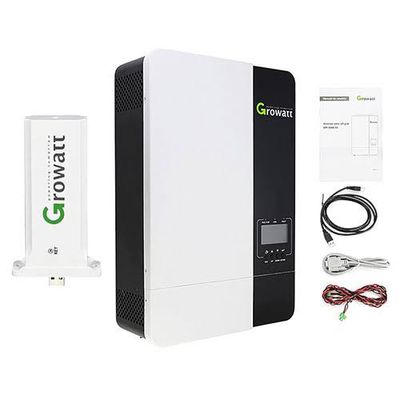

Growatt Hybrid Inverter 3.5 Kva
BatteryBattery Voltage: 48VDCBattery Type: Lithium/Lead-acidInverter OutputRated Power: 3500VA/3500WParallel Capability Yes, 6 units maximumAC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60HzSurge Power: 7000VAEfficiency (Peak): 93%Waveform: Pure sine waveTransfer TimeTypical: 10msMaximum: 20msSolar ChargerMaximum PV Array Power: 4500WMPPT Range at Operating Voltage: 120VDC-430VDCNumber of Independent MPP Trackers: 1Strings Per MPP Tracker: 1Maximum PV Array Open Circuit Voltage: 450VDCMaximum Solar Charge Current: 80AAC ChargerCharge Current: 60AAC Input Voltage: 230 VACSelectable Voltage Range170-280 VAC for Personal Computers90-280 VAC for Home ApplanationFrequency Range: 50Hz/60Hz Auto sensingAdditional FeaturesBattery Type: Lithium / Lied acidIntegrated MPPT charge controllerEqualization charging functionWork with or without batteryConfigurable grid or solar input priorityOptional WIFI / GPRS remote monitoringSupport parallel operation for capacity expansion up to 30kWPV and grid power the load jointly if PV energy is insufficientFlexibly schedule the Inverter charging and discharging timePhysicalProtection Degree: IP20Dimension W x H x D: 330 x 485 x 135mmNet Weight: 11.5 KgOperating EnvironmentHumidity: 5 to 95% Relative Humidity(Non-condensingAltitude: 2000mOperating Temperature: 0-55°CStorage Temperature: -15-60°C
Dipto Electronics Savar
Category List
All products
Battery
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
Inverter Output
Rated Power: 3500VA/3500W
Parallel Capability Yes, 6 units maximum
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
Surge Power: 7000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave
Transfer Time
Typical: 10ms
Maximum: 20ms
Solar Charger
Maximum PV Array Power: 4500W
MPPT Range at Operating Voltage: 120VDC-430VDC
Number of Independent MPP Trackers: 1
Strings Per MPP Tracker: 1
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 80A
AC Charger
Charge Current: 60A
AC Input Voltage: 230 VAC
Selectable Voltage Range
170-280 VAC for Personal Computers
90-280 VAC for Home Applanation
Frequency Range: 50Hz/60Hz Auto sensing
Additional Features
Battery Type: Lithium / Lied acid
Integrated MPPT charge controller
Equalization charging function
Work with or without battery
Configurable grid or solar input priority
Optional WIFI / GPRS remote monitoring
Support parallel operation for capacity expansion up to 30kW
PV and grid power the load jointly if PV energy is insufficient
Flexibly schedule the Inverter charging and discharging time
Physical
Protection Degree: IP20
Dimension W x H x D: 330 x 485 x 135mm
Net Weight: 11.5 Kg
Operating Environment
Humidity: 5 to 95% Relative Humidity(Non-condensing
Altitude: 2000m
Operating Temperature: 0-55°C
Storage Temperature: -15-60°C
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
Inverter Output
Rated Power: 3500VA/3500W
Parallel Capability Yes, 6 units maximum
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
Surge Power: 7000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave
Transfer Time
Typical: 10ms
Maximum: 20ms
Solar Charger
Maximum PV Array Power: 4500W
MPPT Range at Operating Voltage: 120VDC-430VDC
Number of Independent MPP Trackers: 1
Strings Per MPP Tracker: 1
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 80A
AC Charger
Charge Current: 60A
AC Input Voltage: 230 VAC
Selectable Voltage Range
170-280 VAC for Personal Computers
90-280 VAC for Home Applanation
Frequency Range: 50Hz/60Hz Auto sensing
Additional Features
Battery Type: Lithium / Lied acid
Integrated MPPT charge controller
Equalization charging function
Work with or without battery
Configurable grid or solar input priority
Optional WIFI / GPRS remote monitoring
Support parallel operation for capacity expansion up to 30kW
PV and grid power the load jointly if PV energy is insufficient
Flexibly schedule the Inverter charging and discharging time
Physical
Protection Degree: IP20
Dimension W x H x D: 330 x 485 x 135mm
Net Weight: 11.5 Kg
Operating Environment
Humidity: 5 to 95% Relative Humidity(Non-condensing
Altitude: 2000m
Operating Temperature: 0-55°C
Storage Temperature: -15-60°C
Growatt Hybrid Inverter 3.5 Kva
42,000 BDT52,000 BDTSave 10,000 BDT
